DV Converter -Y/C & Composite

Converts DV (FireWire) to Y:U:V, S-Video (Y/C), Composite Video (CV) & Stereo Audio. The biggest differences between this and the DAC-200 are that the DAC-6 has component output, and that it will only convert DV to analogue (not vice versa). So you can take a standard FireWire signal and output it in component. If you need analogue inputs (including component) you will need the DAC-15 (see below) .

Also features built in DV Repeater allowing multiple units to be cascaded together in runs up to 200m.

Each DAC-6 can be connected to a Plasma display for example allowing a video/audio signal to be distributed around an exhibition or conference up to 200m without quality loss. Also ideal when using DV cameras with analogue video switchers / mixers using long DV cables without concerns about quality loss..

Features

• DV (Firewire) I/O
• DV (Firewire) Loop Through with built in DV Repeater
• Cascade multiple units in runs up to 200m without quality loss
• YUV, Y/C, Composite & Stereo Audio (unbalanced) monitor output
• Real-time conversion

Datavideo BAC-03 Bi-Directional Balanced / Unbalanced Audio Converter.

• Converts Balanced / Unbalanced Audio.
• Bi-directional conversion in real-time.
• Ideal for connecting consumer products to professional equipment, or vice versa.

Features

• Bi-Directional Balanced / Unbalanced Audio Converter
• Stereo Balanced Audio In / Out via XLR Sockets
• Stereo Unbalanced Audio In / Out via Phono Sockets
• Robust Metal Construction
• Supplied c/w Power Adapter

DV (Firewire) to Component Y:U:V Converter, S-Video (Y/C) and Composite.

The DAC-15 is a bi-directional Digital to Analogue A/V converter. It has many advanced features including RS-422 player control via DV NLE systems. The DAC-15 has a built in video processor with Colour, Contrast, Brightness and Tint (NTSC only) adjustments. Another useful feature is SmartDV which will allow the DAC-15 and a second DV device to be connected to an NLE system simultaneously.

Features

• DV (Firewire) Input / Output
• Component (Y:U:V), S-Video (Y/C), Composite Video & Stereo Audio Input / Output
• RS-422 Player Control
• NTSC/PAL Selectable
• 12 Bit or 16 Bit Audio Encoding
• Blackburst Output to provide Sync Lock
• Audio Level & Colour Balance Adjustment
• Windows XP, 2000, ME & 98SE Compatible
• PowerMac & iMac Compatible
• Real-Time Conversion (either direction)
• Robust Metal Construction
• Large Illuminated Selector Buttons

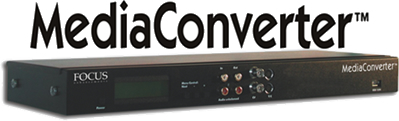

With the MediaConverter™ MC-2E DV/SDI/Analogue Converter—the most advanced video and audio signal transcoder that Focus Enhancements has ever developed—you can achieve professional, high-quality bidirectional DV/SDI-to-analogue video conversion. Rackmount ready, the MediaConverter MC-2E can be easily added to your existing AV rack.

Designed for broadcast and professional postproduction, the MediaConverter MC-2E makes advanced, bidirectional video conversion affordable, reliable, and easy. With a variety of inputs and outputs, the MediaConverter MC-2E enables you to convert DV to analogue video, analogue video to DV, and analogue or DV to SDI. No matter what your conversion needs are—DV, CV, Y/C, YUV, or SDI—the MediaConverter has you covered.

NLE System Compatibility

The perfect complement to popular editing systems such as Avid Xpress DV, Avid Liquid, Apple Final Cut Pro, and Adobe Premiere, the MediaConverter MC-2E enables you to work with footage from any source—including video recorded on older tape formats-—by converting it to digital video for nonlinear editing. Once your program is edited, you can transfer it to tape for archiving

Audio Conversion

The MediaConverter MC-2E also includes a full-featured audio signal converter with connections for unbalanced stereo, balanced stereo, AES/EBU, and DV/SDI embedded audio. The audio input can be selected independently from the video signal and all audio outputs are available simultaneously, enabling the MediaConverter MC-2E to embed or de-embed audio.

TBC and Genlock

The Focus MediaConverter MC-2E includes full-frame time base correction and Genlock, making it perfect for broadcast applications.

Timecode Conversion and Control

Featuring D-VITC to DV TC conversion, the MediaConverter MC-2E ensures that users of nonlinear editing systems can easily maintain the same timecode values as tape. The MediaConverter MC-2E includes an RS-422 interface that enables smooth conversion of RS-422 LTC to DV TC and an RS-232 interface for firmware updates and system settings. Video levels, audio levels, and color phase (HUE) can be adjusted by the user for maximum control over picture and sound.

Features

• Convert between SDI, DV, YUV, S-Video in RealTime
• 10 Bit SDI Video I/O
• SDI Audio Embedded
• AES/EBU and Balanced/Unbalanced Audio via XLR
• Genlock Interface with LoopThrough - for Synchronisation to a Studio Reference Signal
• RS-232 Interface for Remote Operation and Firmware Upgrades
• User friendly LCD Interface
• 19” Rack Mountable 2(U)
• RS-422 interface for Control of VTR's via NLE Systems such as AVID, Final Cut Pro, Pinnacle, Adobe Premiere etc.
• PAL & NTSC Compatible

Convergent Design's HD Connect LE is a new and reasonably priced box which can convert any incoming HDV signal (both 1080i 50/60 & 720p 24/25/30) into both SD & HD-SDI.

Features:

• HDV (over 1394) > HD-SDI/SD-SDI (with embedded audio and time code)
• 720p and 1080i Input Support
• 50Hz and 59.94Hz compatible
• 1080i/50, 1080i/59.94, 720p/50, 720p/59.94, 625i/50, and 525i/59.94 Output Support
• Varicam flags in HD-SDI stream to support 24p
• HDV Deck Control via RS-422 ? 1394 translation
• All outputs simultaneously active
