LG-NAS drive with Blu-ray

Online Catalogue | SYSTEM ADD-ONS
HD monitors, external drives and raids
 | Storage |  LG-NAS drive with Blu-ray

LG-Nas drive with Blu-ray

LG-Nas drive with Blu-ray

Quantity:

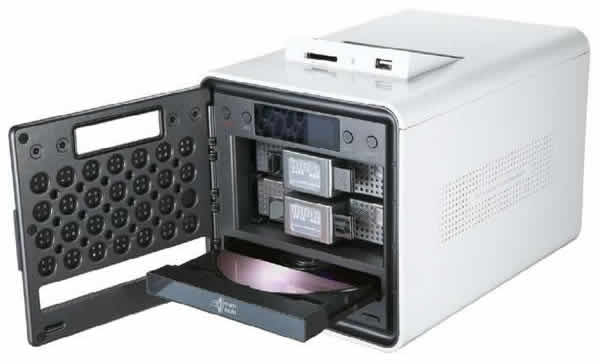

We have a new external back up and Blu-ray drive.  The LG-NAS box takes two hard drives and has a Blu-ray writer built-in, as well as a card reader, a eSATA port and a USB port.  It is a great device for backing up footage - just pop the card into the card reader and the box asks "do you want to copy this on to the hard drives". Say yes and the entire contents is copied onto the hard drives installed in the box.  The drives can be RAIDed as well so with two drives you have two identical copies of the footage and if one drive dies you simply insert another drive and carry on.  The speed is about the same as any card reader - so for example copying 16GB of data off my HD cards took around 20 minutes.

It can do the back up without being connected to any computer - so it is perfect if you are, for example, filming AVCHD on HD-SC cards - just pop the card into the box, copy the footage across, and you have an instant back up.

The box is also a NAS (Network Attached Storage) device.  This means computers can access it via a network connection.  It can either be connected directly to the network port on your computer or  via a hub.  NAS drives are not the fastest in the world - copying footage to and from the device to a computer was a little bit slower than an average USB hard drive, so it is not a great external device from which to edit.  However that is not the point of the box; it is designed as a back up device with built-in RAID in case a hard drive goes wrong.

Built-in Blu-ray

The box also has a Blu-ray drive.  You can either insert Blu-ray discs and copy footage from the discs onto the internal drives, or write files on the drives to the Blu-ray discs.   You can also write to the Blu-ray drive from a PC using the software that comes with the box.  Unlike other external Blu-ray drives you cannot write from ANY program on your computer, however you can make an ISO (an image) file up and then write this image using the Power Producer software that ships with the drive.  You can even play back Blu-ray discs, although not copy-protected discs which are looking for HDCP support on your graphic card and monitor.

We have successfully written video Blu-ray discs created in Encore using the LG-NAS box, as well as many other discs.


What size drives do you want in the LG-NAS?

NB: If drives are mirrored you will only get half the capacity - so 2 x 500GB gives 500Gb usable space.


Size

1TB (2 x 500GB) (£322.00 plus VAT)
2TB (2 x 1TB) (£371.00 plus VAT)
4TB (2 x 2TB) (£478.00 plus VAT)


Technical specs

G N2B1DB2 NAS 1TB + integrated BluRay
Device Type: NAS server
Host Connectivity: Hi-Speed USB / Gigabit Ethernet / eSATA-300
Total Storage Capacity: 1 TB
Max Supported Capacity: 2 TB
Dimensions (WxDxH): 16.2 cm x 16.5 cm x 23 cm
Weight: 5.2 kg
Built-in Devices: Status LCD, 4-in-1 card reader
Processors Installed: Marvell 88F6192 800 MHz
RAM Installed: DRAM 128 MB
Type: RAID
RAID Level: RAID 0, RAID 1, JBOD, RAID 0+1
Type: Hot-swap - 3.5"
Capacity: 2 x 500 GB
Interface Type: Serial ATA-150
Type: 1 x BD-RE
Type: Network adapter
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Network / Transport Protocol: FTP, SMB
Network Services Compatibility: Microsoft Active Directory (AD), Microsoft CIFS, FTP, FTPS, Server Message Block (SMB), Apple File Protocol (AFP), HTTP, HTTPS
Features: Dynamic DNS server, E-mail alert, print server, firmware upgradable, web server, torrent/P2P data exchange, iTunes server, FTP server
Compliant Standards: DLNA CERTIFIED
Expansion Bays Total (Free): 2 ( 0 ) x front accessible - 3.5"
Interfaces:
1 x eSATA-300 - 7 pin external Serial ATA
3 x Hi-Speed USB - 4 PIN USB Type A
1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45
Features: Security lock slot (cable lock sold separately)
Compatible with Windows 7: "Compatible with Windows 7" software and devices carry Microsoft's assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.
Software Included: Netscape Navigator, Opera, Microsoft Internet Explorer 6.0, Apple Safari, Mozilla Firefox, Memeo AutoSync
OS Required: Microsoft Windows 2000, Red Hat Linux, Apple MacOS 9.x, SuSe Linux, Microsoft Windows XP, Apple MacOS X 10.x, Microsoft Windows Server 2003, Microsoft Windows Vista, Ubuntu
