Kona LSe

Online Catalogue | EDITING PROGRAMS | AJA Cards |  Kona LSe

AJA Kona LSe

AJA Kona LSe


Analog and Digital capture card for standard definition workflows

The affordably priced KONA LSe is the perfect video capture and playback card for a standard definition editing system on Mac or PC. KONA LSe offers full featured SD connectivity and integration with Apple Final Cut Pro on a Mac, support for software applications like Adobe After Effects and Apple Motion - and can work with a wide range of popular file formats (QuickTime, TGA, TIFF, BMP, AVI, YUV)

KONA LSe can capture to QuickTime™ at uncompressed 10 bit 4:2:2 or 8bit 4:2:2 and allows ingest from-and mastering to- BetacamSP, Digital Betacam, DVCPro50 as well as other standard definition VTRs. KONA LSe also supports capture and playback from compressed SD formats like DV and DVCPro50, to provide the most flexibility for your SD workflows (formats and file type support varies by platform and software used).

KONA LSe also has great audio I/O support: 2-channel balanced XLR analog, 2-channel balanced XLR AES/EBU, and multi-channel embedded SDI audio. Hardware sample-rate conversion is provided on AES inputs, eliminating source synchronizing requirements.

Extend your Connectivity with KL-BOX

The optional KL-Box provides all the standard features of a cable in an easy-to-use 1RU rackmount panel, extending KONA LSe's connectivity with BNC AES/EBU connections, and RCA audio monitoring jacks. Order KL-Box-LH for use with the KONA LSe (PCIe bus card), or KL-Box for use with the KONA LS (PCI bus card).

Features

MacWindows
;
  • 12-bit SD component, composite or S-video analog input/output
  • SDI input and 2 SDI outputs
  • AES digital audio input/output; sample rate conversion on input (2 channel, balanced XLR)
  • Balanced analog audio I/O (2 channel, balanced XLR)
  • Genlock and RS-422 machine control
  • Supports all popular standard definition formats: 8 and 10-bit uncompressed, JPEG, DV25, DV50 and more
  • Cables standard, KL-Box breakout optional
  • 3-year warranty
  • Available in PCIe as KONA LSe
  • Available in PCI/PCI-X compatible form (KONA LS)


  • £699.00 +VAT , £838.80 inc. VAT at 20%


    Quantity:

    The Kona Lhe breakout box

    Kona LHe breakout box

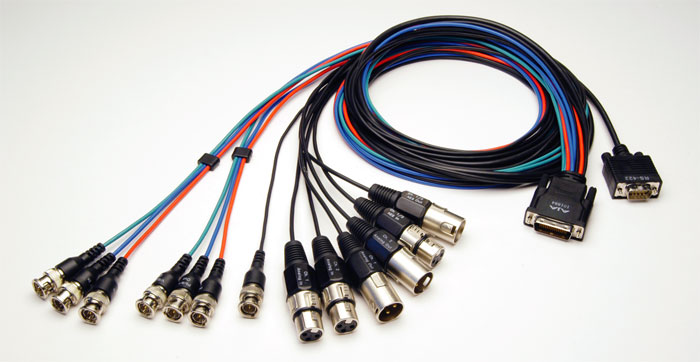

    The Kona Lhe breakout cables

    Kona LHe breakout cables

    KONA LSe Specifications

    Video Input

    • SD-SDI SMPTE-259
    • Composite/S-Video (Y/C):
      • NTSC, NTSCJ, PAL
      • 12-bit A/D, 2x oversampling
      • 3 line adaptive comb filter decoding
    • Component:
      • SMPTE/EBU N10
      • Betacam 525 line, Betacam 525J, RGB
      • 12-bit A/D, 2x oversampling

    Video Formats

    • 525i 29.97, 625i 25

    Video Output

    • Digital:
      • SD-SDI, SMPTE, 259M, 10-bits, BNC
    • Analog:
      • Composite/S-Video (Y/C):
        • NTSC, NTSCJ, PAL 12-bit D/A, 8x oversampling
      • Component:
        • SMPTE/EBU N10, Betacam 525 line
        • Betacam 525J, RGB
        • 12-bit D/A, 8x oversampling

    Audio

    • Digital:
      • 24-bit SDI embedded audio, 8 channel, 48kHz
      • 24-bit AES audio, 2 channel, 48kHz
      • 16-bit capable
    • Analog:
      • 24-bit A/D and D/A, 2 channel balanced XLR, 48kHz
      • +24dbu Full Scale Digital
      • +/- 0.2db 20 to 20kHz frequency response

    Reference Input

    • Color Black
    • (Ref input is looping, non-terminating on the KL-Box Breakout Box; terminated on supplied breakout cable)

    Machine Control

    • RS-422, Sony 9-pin protocol
