Kona 3G

Kona 3G

Kona 3G

Total Price:1,699.00  +VAT  (2,038.80 Inc. VAT at 20%)

KONA 3G features 10-bit Uncompressed video I/O, 4K playout, the newest HDMI 1.4a support for 3D workflows, 16-channel SDI embedded audio I/O, and up to 16-channel AES digital audio I/O (8 with breakout cable or 16 with optional K3G- Box). Add to that realtime hardware-based up/down/cross conversion for efficiently working with a wide variety of SD and HD, 3G, dual-link HD, even 2K formats, a hardware downstream keyer for compositing graphics without rendering, and so much more.

3D Stereoscopic flexibility

KONA 3G offers you the most affordable and simplest path through 3D Stereoscopic workflows.

Through SDI, you can output Discrete Left and Right Eye feeds with a simple Stereo button choice in the AJA Control Panel. In addition, all the muxed feeds for SDI stereo monitoring are accessible through tight integration with CineForm's stereo codecs in Apple FCP and Adobe Premiere Pro timelines for Side by Side and Top Bottom.

Through HDMI 1.4a, you can utilize more affordable 3D monitors for Side by Side and Top Bottom needs.

Broadcast-quality conversions

KONA 3G features full 10-bit, broadcast-quality, motion-adaptive SD to HD up-conversion, HD to HD cross-conversion, HD to SD down-conversion, and automatic HD/SD 12-bit component analog output. Since all conversion functionality on the KONA 3G is hardware-based, its available all the time on ingest or playback.

Uniquely, the KONA 3G can cross-convert 720p 23.98 to 1080PsF 23.98. Cross-conversion is particularly valuable in todays multi- format HD post environment where producing pristine 720p or 1080i signals at-will helps streamline dailies and deliverables.

Internal SD/HD hardware downstream keyer

The AJA KONA 3G features a powerful hardware downstream keyer that can place graphic files with an alpha channel over the video being input to the boardor a selectable color matte, or the contents of the cards framebuffer (ex: AJA TV/Apple Final Cut Pro). The downstream keyer can also key a QuickTime video clip that has an alpha channel by playing it in realtime, via the supplied AJA TV application, over live video coming into the card.

Connectivity

For SDI video, the card features two 3G/HD/SD-SDI inputs and two outputsor for 4K playout all four SDI connectors can be used for output, HDMI 1.4a monitoring output, LTC input and output, one connection for Genlock input, and configurable 3x BNC HD/SD analog video output.

Also included is a 9-pin connector for RS-422 machine control. If youre using a Digital Betacam, DVCPro50, HDCAM, DVCPRO HD, D5, or HDCAM SR VTRor any other professional deviceyoull have the proper connections.

Dual link HD support

KONA 3G supports Dual Link 4:4:4 HD-SDI, with full bandwidth 4:4:4 RGB at 10-bits for 1080i, 1080p, 1080PsF and 720p formats. KONA 3G can also convert between 4:4:4 and 4:2:2 formats for single link HD-SDI monitoring and output.

2K support

As the most capable 2K card for the Mac, you can use KONA 3G to ingest from 3G or HSDL (high speed data link) equipped sources and record at full frame rate or record simultaneous 2K DPX files and 2K QuickTime reference movies using the AJA VTR Xchange application. You can also work with existing 2K material, like sequential DPX or Cineon files, by using AJAs DPXToQT Translator application to create QuickTime files for a wide variety of applications. RED Epic and ARRI Alexa workflows are eased by KONA 3G, with true realtime 2K playback and LUT support.

On a PC, KONA 3G can connect to a 2K telecine saving time and steps by directly creating 2K DPX, QuickTime, Cineon, AVI, TGA, TIFF or BMP files. Users can capture directly into the format they need and move files immediately into their editing/compositing environment of choice. These same files can be played out at 2K via 3G or High Speed Data Link (HSDL), offering further synergy with other 2K products already in use in the market.

KONA 3G also allows 2K files to be viewed with a user selected crop function on HD 1080PsF supported video monitors. This functionality helps lower the price barrier for viewing 2K material.

4K playout

Leading the way for quality 4K monitoring, KONA 3G offers 4K playback in both YCbCr and RGB. When 4K playout is selected, the four SDI connectors are remapped as outputs for driving four quadrants of a 4K display. A large number of 4K formats are supported for this emerging workflow.

Audio

Tie the KONA 3G to a digital audio mixer or DAW output with 8-channel 24-bit 48kHz or 96kHz AES audio via BNC connections on the supplied breakout cable or get the optional K3G-Box to output an even larger 16-channels of AES audio.

KONA 3Gs high-quality input sample-rate conversion on AES inputs eliminates the need for audio source synchronization.

For multi-channel audio mastering, 16-channel SDI embedded 24-bit 48kHz audio provides the power you need to integrate into any audio environment.

Extend your Connectivity with K3G-Box for KONA 3G

The optional K3G-Box simplifies connectivity in professional post-production environments by offering a 19-inch, 1RU rack-mountable breakout box that attaches to the KONA 3G via an included multi-pin cable and two cables supplied with the KONA 3G. Additional K3G-Box functionality over the standard breakout cable comes in the form of 8 additional AES audio channels, 2-channel RCA analog audio monitoring jacks, and looping BNC Genlock reference connectors.


Features

MacWindows
  • 2 SD/HD/3G SDI inputs and 2 SD/HD/3G SDI outputs
  • HDMI 1.4a Output for 3D workflows
  • Analog Video Output of Y,Pb,Pr, or R,G,B, or CVBS and Y, C.
  • 16-channel SDI embedded audio I/O
  • Up to 16-channel AES digital audio I/O
    (8 with breakout cable or 16 with optional K3G-Box)
  • Terminating video reference input
  • Separate LTC input and output ports
  • Master or Slave configurable RS422 control port
  • Video up, down, and cross conversion
  • Internal hardware keyer
  • 2K video format support
  • 4K playout mode
  • Additional features available with use of K3G-Box:
  • Video reference active loop output
  • Left and Right analog audio monitor output
  • Additional 8 single ended (75Ohm BNC) AES channels (providing a total 16 discrete channels of AES audio)

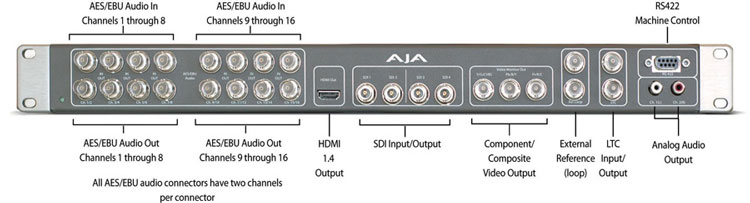

The Kona 3G breakout box

Kona 3G breakout box

KONA 3G Specifications

Video Input

  • Dual-rate (SD or HD)
  • 3G SD and HD-SDI, SMPTE-259/292/296/424, 10-bits
  • Single Link 4:2:2
  • Dual-link HD 4:4:4
  • 2K HSDL (High Speed Data Link) 4:4:4
  • 1D LUT Support (Mac and PC)

Video Formats

  • 480i 29.97
  • 525i 23.98 (intermediate format only)
  • 525i 29.97
  • 625i 25
  • 720P 23.98 (intermediate format only)*
  • 720p 24 *
  • 720p 25 *
  • 720p 29.97*
  • 720p 30 *
  • 720P 50
  • 720P 59.94
  • 720P 60
  • 1080i 25
  • 1080i 29.97
  • 1080i 30
  • 1080PsF 23.98
  • 1080PsF 24
  • 1080PsF 25
  • 1080PsF 29.97
  • 1080PsF 30
  • 1080p 23.98
  • 1080P 24
  • 1080P 25
  • 1080P 29.97
  • 1080P 30
  • 1080P 50
  • 1080P 59.94
  • 1080P 60
  • 2048 x 1080P 23.98
  • 2048 x 1080P 24
  • 2048 x 1080PsF 23.98
  • 2048 x 1080PsF 24
  • 2048 x 1556p 15
  • 2048 x 1556PsF 14.98
  • 2048 x 1556PsF 15
  • 2048 x 1556Psf 23.98
  • 2048 x 1556PsF 24

4K Playout Video Formats

  • 3840x2160P 24
  • 3840x2160P 23.98
  • 3840x2160P 25
  • 4096x2160P 24
  • 4096x2160P 23.98
  • 4096x2160P 25
  • 3840x2160PsF 24
  • 3840x2160PsF 23.98
  • 3840x2160PsF 25
  • 4096x2160PsF 24
  • 4096x2160PsF 23.98
  • 4096x2160PsF 25

Video Output

Digital:

  • 3G SD and HD-SDI, SMPTE-259/292/296/424
  • Dual-link HD 4:4:4 and 2K HSDL 4:4:4
  • 4K playout via 4 SDI, YCbCr and RGB
  • HDMI v1.4, 30/36 bits/pixel, RGB or YUV, 2.25Gbps

Analog:

  • SD and HD Output, 12-bits, BNC
  • HD: YPbPr, RGB
  • SD: YPbPr, RGB (component mode) or Composite +
  • Y/C (composite mode with simultaneous Y/C)

* Note: Formats marked with an asterisk are non "over-the-wire" VFR formats

Downstream Keyer:

Will output graphics with alpha channel over video, matte or framebuffer, or framebuffer content over incoming video or matte

Audio

  • 24-bit SDI embedded audio, 16 channel, 48kHz
  • 24-bit AES audio, 8 channel w/breakout cable or 16 channel with optional K3G-Box, 96kHz or 48kHz 24- or 16-bit capable

Up-Conversion

  • Hardware 10-bit
  • Anamorphic: full-screen
  • Pillar box 4:3: results in a 4:3 image in center of screen with black sidebars
  • Zoom 14:9: results in a 4:3 image zoomed slightly to fill a 14:9 image with black side bars
  • Zoom Letterbox: results in image zoomed to fill full screen
  • Zoom Wide: results in a combination of zoom and horizontal stretch to fill a 16:9 screen; this setting can introduce a small aspect ratio change

Down-Conversion

  • Hardware 10-bit
  • Anamorphic: full-screen
  • Letterbox: image is reduced with black top and bottom added to image area with the aspect ratio preserved
  • Crop: image is cropped to fit new screen size

Cross-Conversion

  • Hardware 10-bit P 59.9
  • 1080i to 720P
  • 720P to 1080i
  • 720P to 1080PsF

SD to SD Aspect Ratio Conversion

  • Letterbox: This transforms SD anamorphic material to a letterboxed image.
  • H Crop: Will produce a horizontally stretched effect on the image; transforms anamorphic SD to full frame
  • SD Pillarbox: Will produce an image in the center of the screen with black borders on the left and right sides and an anamorphized image in the center
  • V Crop; Will transform SD letterbox material to an anamorphic image.

Reference Input

  • Analog Color Black (1V) or Composite Sync (2 or 4V) Non terminating, Looping, 75 ohm on K3G-Box, terminated on supplied breakout cable

LTC

  • Input and Output, 2 BNCs

Machine Control

  • RS-422, Sony 9-pin protocol
